The FG-ODP is a Point Sensor for liquid hydrocarbon and non-conductive solvent leak detection. It is suitable to detect hydrocarbon floating on water, for example on tank application. Fast response and re-usable after leak detection, the FG-ODP Point Sensor can be installed in humid environment, as it is insensitive to water.
It is designed to be connected with TTK units FG-NET, FG-BBOX, FG-ALS8-OD, FG-ALS4-OD, FG-A-OD and FG-STAD to provide quick detection of liquid hydrocarbon leaks.

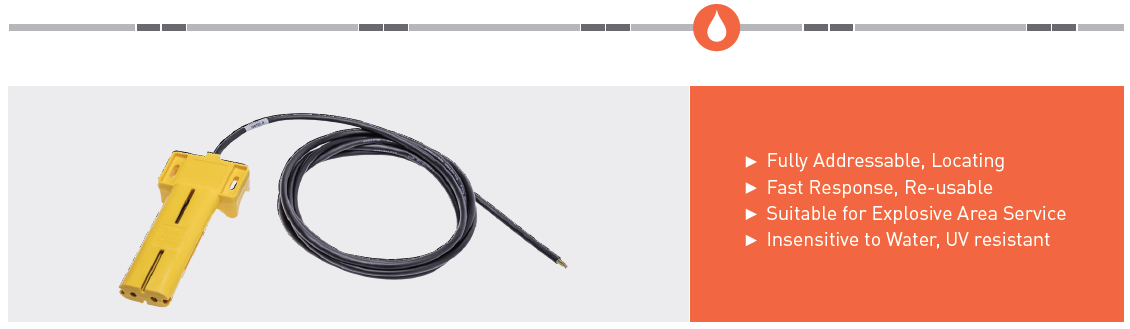

FG-ODP
FEATURES
- The point sensor is available in 115mm sensing height.
- FG-ODP is IP 68 protection marked (for the electronic components and related connections).
- Can be cleaned.
- Intrinsically safe - can be used in classified areas: Ex ia IIB T4 Ga (IECEx “Zone 0”).
BENEFITS
- Reliable detection:
- Sensitive to liquid hydrocarbons.
- Insensitive to water, inorganic pollutants and external loads (pressure). UV resistant.
- Can be reused, allows reducing OPEX (operational expenditures) and testing leak detection under real conditions.
- Easy to install and remove.
TECHNICAL DATA
| External diameter | 40 mm |
| Tube material | Antistatic Polymer |
| Leader cable | OD BUS 8771 |
| Min. Max. working temperature | -30°C ≤ Tamb ≤ +100°C |
| Reusable | Yes |
| Connector protection index classification (DIN/EN/IEC60529) | IP 68 |
