FEATURES

• Available in standard and pre-connected lengths of 3, 7 and 15 metres. They can be interconnected to provide an expandable network of leak detection.
• Same function as FG-EC Digital Sense Cable, the FG-ECB sense cables contain an embedded microprocessor, it intelligently monitors the cable status, it provides continuous real-time communication to the TTK digital units.
• Each cable has a high visibility LED to provide quick green/red identification of the cable status:
  • Green LED: normal status, no alarm raised;
  • Red LED: leak detection on the cable;
  • LED off: cablebreak on this or any upstream cable.

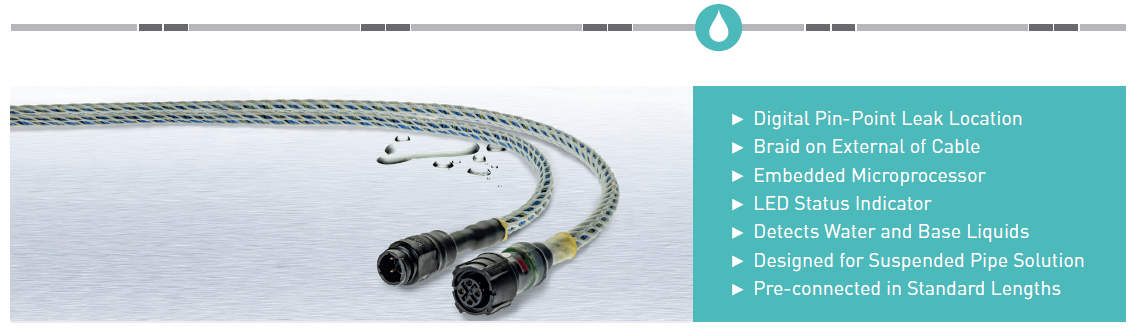

• Small diameter, light, flexible, the sense cable is in an easily identifiable light blue colour, with a white braided jacket.
• Ingenious design: external polyethylene based braided jacket and 4 PEHD conducted helical construction - connected on an extruded central core, insensitive to dust and metal particles contamination, prevents false alarms.
• A set of TTK bus 8723 jumper cables and connection accessories
  gives continuity to each circuit.

BENEFITS

• Detects and pin-points the location of a water/base leak to the nearest metre along the length of the cable.
• Detects and localizes cablebreak on the cable.
• The FG-ECB sense cable is a non-absorbent design that can be reused after leaks. Cable drying is easy.
• An external polyethylene based braided jacket keeps water around the cable thus assures an efficient detection.
• Easy installation with pre-finished male and female connectors. FGECB is to install under the suspended pipes, to be belt on the bottom of these pipes. No need drip tray.
• Flexible design: in both liner and sector mode (via FG-DTC box).

TECHNICAL DATA
