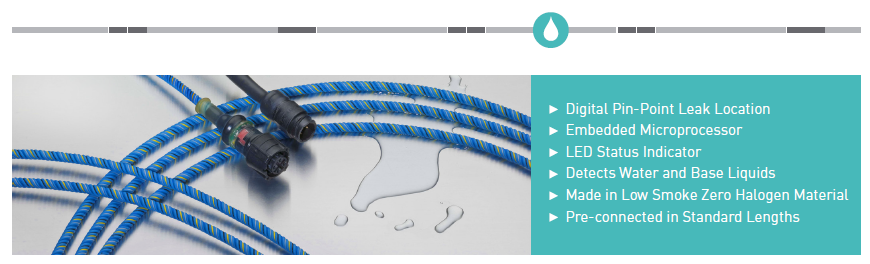

FEATURES

• Available in standard and pre-connected lengths of 3, 7 and 15 metres. They can be interconnected to provide an expandble network of leak detection.
• The cable contains an embedded microprocessor, it intelligently monitors the cable status, it provides continuous real-time communication to the TTK digital units.
• Each cable has a high visibility LED to provide quick green/red identification of the cable status:

  • Green LED: normal status, no alarm raised;
  • Red LED: leak detection on the cable;
  • LED off: cablebreak on this or any upstream cable.
• Small diameter, light, flexible and in an easily identifiable light blue colour.
• Ingenious design: four conducted wires of helical construction, compressed and connected on an extruded central core, insensitive to dust and metal particles contamination, preventing false alarms.
• Fixing clips available to fasten the sense cables.
• A set of TTK BUS 8723 jumper cables and connection accessories gives continuity to each circuit.

BENEFITS

• Detects and pin-points the location of a water/base leak to the nearest metre along the length of the cable.
• Detects and localizes cablebreak on the cable.
• Manufactured with the low smoke zero halogen (LSZH or LS0H) materials, FG-EC cable emits, when burned, a less optically dense smoke that releases at a lower rate than a non-LSZH cable.
• Short drying time.
• The FG-EC sense cable is a non-absorbent design that can be reused after leaks, reducing the maintenance costs.
• Easy installation with pre-finished male and female connectors.
• Flexible design: in both liner and sector mode (via FG-DTC box).
• The typical applications are data centres, trading floors, high value and mission critical infrastructure.

TECHNICAL DATA
