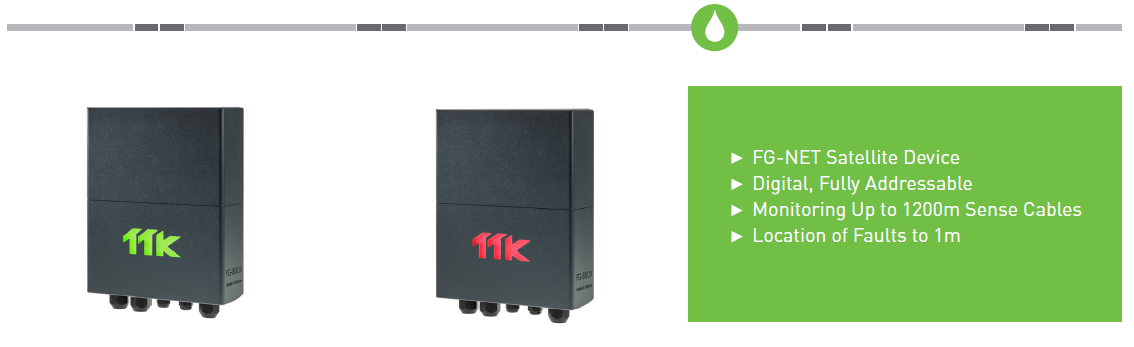

The FG-BBOX is a satellite device of the TTK FG-NET Digital Unit. It is monitored by FG-NET via a standard Ethernet network. It expands FG-NET to manage two additional circuits of sense cables with up to 1200 metres of additional Sense Cables.
The FG-BBOX can be connected with all TTK Digital Sense Cables, for water, acids and oil leak detection.
The FG-BBOX has the same advanced functionalities as FG-NET with multiple simultaneous leak location to 1m accuracy. All command and control is centr
FG-BBOX
FEATURES
- Up to 80 Digital Sense Cables can be managed independently providing a maximum protected length of 1200m for the both circuits.
- No physical jumper cable or distance limit between FG-NET unit and FG-BBOX.
- Up to 16 FG-BBOX can be connected to one FG-NET unit without exceeding a total number of 500 Digital Sense Cables per FG-NET.
- TCP/IP connection via standard RJ45 socket.
- Relay type: Volt Free Contact NO/NC.
- 4 Relay contacts: 2 leak relays (1 for each circuit), 1 cable break relay and 1 power failure relay.
BENEFITS
- Multiple simultaneous leaks can be detected and located (80 cables = 80 alarms).
- Different types of sense cables can be connected on the same panel for a truly bespoke system (Water, Acids, Oils)
- Each sense cable is addressable and can be assigned a specific name.
- Cable break faults can be detected (to the nearest cable). When a cable break occurs, the system maintains its integrity by continuing to monitor all preceding cables for faults.
- Extension and upgrade of the system is easy.
TECHNICAL DATA
| Compatibility |
Digital Unit: FG-NET Sense cable (digital): FG-EC, FG-AC, FG-OD range of cables Sense cable (analog through FG-DTCS box): FG-ECS, FG-ACS |
| Dimension | W: 175mm H: 220mm D: 55mm |
| Max. Length of Sense Cable | 80 lengths of sense cable (40 per circuit) |
| Accuracy | +/- 1 meter |
| System Capacity | Up to 16 FG-BBOX can be monitored by FG-NET |
| Supply Voltage | 100 - 240 VAC 0.35A 50/60 Hz |
| Max. Power Consumption | 15W |
| Working Temperature Range | -15°C to 55°C |
| Working Humidity Range | 5% to 80% non-condensing |
| Relay Types | Volt free contact (NO, NC, COM) |
| Relay Number | 4 |
| Connectivity | RJ45 |
| Max. Relay Switching Voltage | 125 VAC and 220 VDC |
| Max. Relay Switching Capacity | 6 W (30V x 2A) |
| Ingress Protection | IP50 - Indoor use only |
