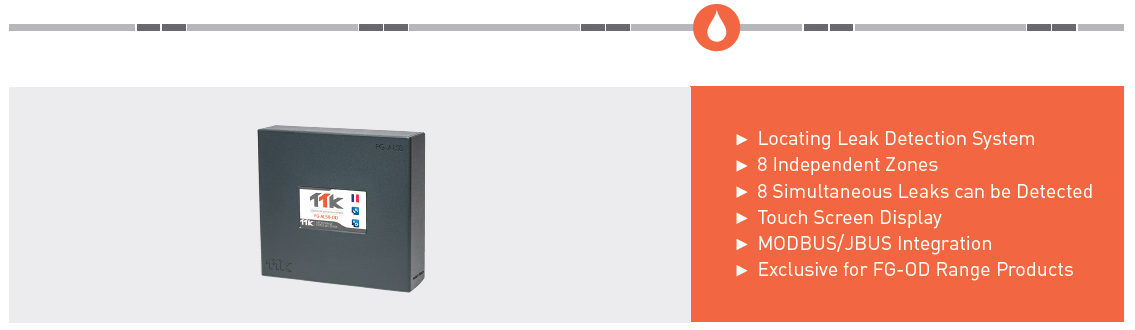

The FG-ALS8-OD, Eight Zones Alarm & Locating System Unit is designed to be used with FG-OD hydrocarbon range of products, to give instant detection and location of liquid (non-conductive hydrocarbon liquids and solvent).
In the event of liquid leak or default on the sense cables for each zone, the responses from the FG-ALS8-OD alarm & locating unit:
- An audible alarm is triggered and a relay is activated.
- The touch screen of the panel displays the zone, the location of the leak (on the cab
FG-ALS8-OD
FEATURES
- The FG-ALS8-OD unit is dedicated to the FG-OD range products including sense cables and point sensors.
- The FG-ALS8-OD unit can control up to 8 FG-OD range sensing elements: sense cables or point sensors.
- 4.3” touch-screen gives a clear indication of the system status.
- User-friendly system - users can customise the system with the sub menus accessible from the home screen, to set up the unit.
- 8 detection zones are available on one unit.
- 9 relays are available, 8 for leak and 1 for system fault.
- RS485 serial link with MODBUS/JBUS communication protocol for interfacing with BMS is available.
BENEFITS
- Locate leaks on the section.
- Detect cable-break fault.
- The FG-ALS8-OD unit is accurate and easy to use in Oil & Gas and Chemical Industries.
TECHNICAL DATA
| Compatibility | Hydrocarbon sense cables: FG-OD, FG-ODC, FG-ODR; Point detector: FG-ODP |
| Enclosure Type | ABS flame retardant UL94V0 |
| Operating Temperature | -5°C to 55°C |
| Serial Interface Physical Support | Optoisolated two wire RS485 |
| Serial Link Parameters | 9600 baud, 8 data bits, 1 stop, no parity |
| Supported Protocol | MODBUS, function 3 |
| Relays Type: Leak + Cable Break | 9 SPDT single contact NO-NC |
| Relay Max. Switching Voltage | 125VAC and 220VDC |
| Relay Max. Switching Capacity | 60W (30V x 2A) |
| Power Consumption | 5 VA |
| Supply Voltage | 100-240Vac - 50/60Hz |
| Dimensions (W,H,D) | 220 x 200 x 55 mm |
